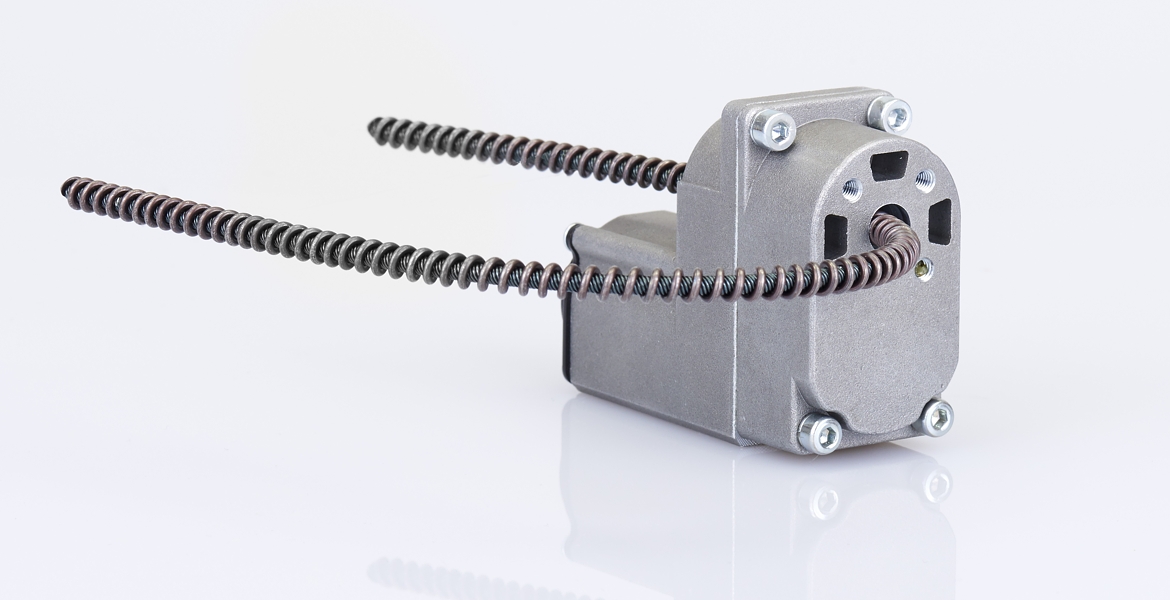

Direct current linear electric actuator with flexible spindle. Pitch 3.5mm. This special actuator is to be used in very small spaces for low dynamic loads. Maximum speed of 36mm/s. Maximum dynamic load of 40 kg.

General information

  • Gearbox Housing: zamac die-casting
  • Gears: helical teeth cutting gears or straight teeth sintered gears
  • Motor: d.c. permanent magnet motor with carbon brushes
  • Flexible screw: diameter 6mm pitch 3.5
  • Working temperature: -10°C ̴ + 60°C
  • Options : a) Hall sensor magnetic encoder – b) Thermal protector.
