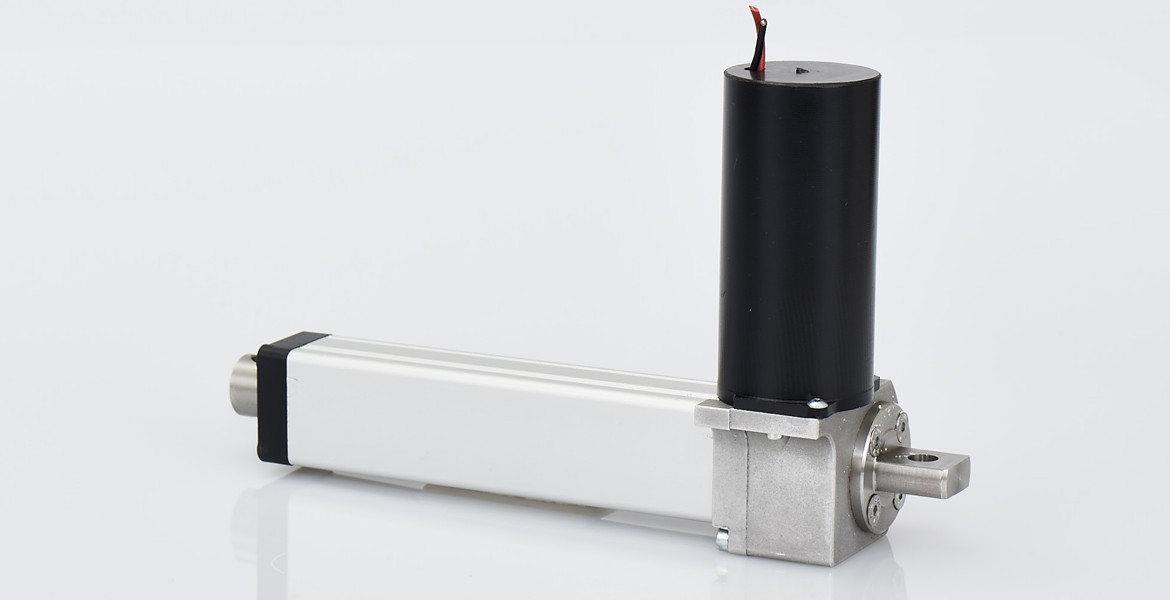

Direct current electric telescopic actuator with trapezoidal spindle. Pitch 3mm or 2mm. Motor perpendicular to the axle. Double worm gearbox. Body in aluminium. Maximum speed of 13mm/s. Maximum push/pull dynamic load of 250 kg. Preset limit switches inside.

Available in 12V and 24V versions. May be customized according to client requests.

The spindle may be customized with different attachments and lengths.

General information

  • Permanent magnet motor 6 -12 - 24 Vdc
  • Double worm gear
  • ACME lead screw
  • Aluminum push rod
  • Working temperature range -10°C +60°C
  • Preset limit switches
  • Encoder on request
  • For any special request, be free to contact our technical department
